Packaging Specifications
| Package | Reel Size (inch) | Reel (pcs) | Inner Box Size (mm) | Box (pcs) | Carton Size (mm) | Carton (EA) |
|---|---|---|---|---|---|---|
| SOT-23 | 7 | 3,000 | 185*185*125 | 30,000 | 385*385*280 | 240,000 |
| SOT-23-6L | 7 | 3,000 | 185*185*125 | 30,000 | 385*385*280 | 240,000 |
| SOT-363 | 7 | 3,000 | 185*185*125 | 30,000 | 385*385*280 | 240,000 |
| SOT-323 | 7 | 3,000 | 185*185*125 | 30,000 | 385*385*280 | 240,000 |
| SOT-323FL | 7 | 3,000 | 185*185*125 | 30,000 | 385*385*280 | 240,000 |
| SOT-323ST | 7 | 3,000 | 185*185*125 | 30,000 | 385*385*280 | 240,000 |
| SOD-123S | 7 | 3,000 | 185*185*125 | 30,000 | 385*385*280 | 240,000 |
| SOD-123S1 | 7 | 3,000 | 185*185*125 | 30,000 | 385*385*280 | 240,000 |
| SOD-123ST | 7 | 3,000 | 185*185*125 | 30,000 | 385*385*280 | 240,000 |
| SOD-123ST1 | 7 | 3,000 | 185*185*125 | 30,000 | 385*385*280 | 240,000 |
| SMAF | 7 | 3,000 | 185*185*125 | 21,000 | 385*385*280 | 168,000 |
| 13 | 5,000 | 330*330*17.6 | 10,000 | 385*385*280 | 50,000 | |
| SMA-S | 7 | 3,000 | 185*185*125 | 21,000 | 385*385*280 | 168,000 |
| 13 | 5,000 | 330*330*17.6 | 10,000 | 385*385*280 | 50,000 | |
| SMA-ST | 7 | 3,000 | 185*185*125 | 21,000 | 385*385*280 | 168,000 |
| 13 | 7,500 | 330*330*17.6 | 20,000 | 385*385*280 | 75,000 | |
| SMA | 13 | 5,000 | 330*330*17.6 | 10,000 | 385*385*280 | 60,000 |
| SMB | 13 | 3,000 | 330*330*17.6 | 6,000 | 385*385*280 | 36,000 |
| SMC | 13 | 3,000 | 330*330*17.6 | 6,000 | 385*385*280 | 30,000 |
| ABS | 13 | 5,000 | 330*330*17.6 | 10,000 | 385*385*280 | 60,000 |
| MBF | 13 | 5,000 | 330*330*17.6 | 10,000 | 385*385*280 | 60,000 |
| TO-277B | 13 | 5,000 | 330*330*17.6 | 10,000 | 385*385*280 | 60,000 |
| DO-218AB | 13 | 750 | - | - | - | 3,000 |
Tape and Reel Specifications

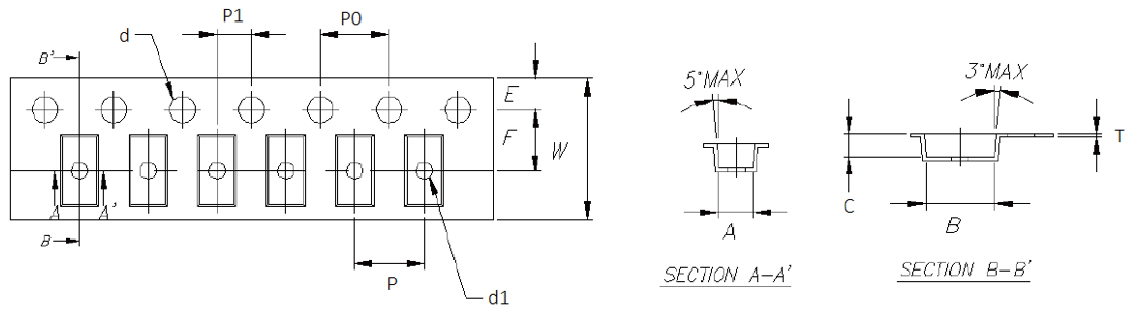

| Package | W (mm) | A (mm) | B (mm) | C (mm) | d1 (mm) | d (mm) | E (mm) | F (mm) | P (mm) | P0 (mm) | P1 (mm) | T (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Tolerance | ±0.3 | ±0.18 | ±0.14 | ±0.1 | ±0.25 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
| SOT-23 | 8.10 | 2.77 | 2.75 |
1.22 |
1.13 | 1.55 | 1.75 | 3.50 | 4.00 | 4.00 | - | 0.20 |
| SOT-23-6L | 8.00 | 3.17 | 3.23 | 1.37 | 1.00 | 1.55 | 1.75 | 3.50 | 4.00 | 4.00 | 2.00 | 0.22 |
| SOT-363 | 8.00 | 2.36 | 2.40 | 1.20 | - | 1.50 | 1.75 | 3.50 | 4.00 | 4.00 | 2.00 | 0.23 |
| SOT-323 | 8.00 | - | 2.90 | 1.25 | 1.46 | 1.50 | 1.75 | 3.50 | 4.00 | 4.00 | 2.00 | 0.23 |
| SOT-323FL | 8.00 | 1.37 | 2.75 | 0.85 | 1.00 | 1.60 | 1.75 | 3.50 | 4.00 | 4.00 | - | 0.20 |

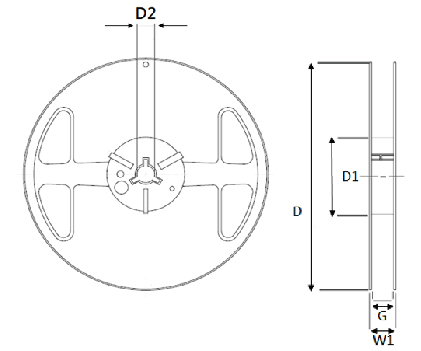

| Package | D (mm) | D1 (mm) | D2 (mm) | G (mm) | W1 (mm) |
|---|---|---|---|---|---|
| Tolerance | ±2.0 | ±1.0 | ±1.0 | ±1.0 | ±1.3 |
| SOT-23 | 178 | 50.2 | 13.0 | 8.0 | 11.55 |
| SOT-23-6L | 178 | 60.0 | - | 9.5 | 13.10 |
| SOT-363 | 178 | 62.0 | 13.0 | - | 11.40 |
| SOT-323 | 178 | 54.4 | 13.0 | 9.5 | 12.30 |
| SOT-323FL | 178 | 50.2 | 13.0 | 8.0 | 11.55 |
Tape and Reel Specifications
| Package | W (mm) | A (mm) | B (mm) | C (mm) | d1 (mm) | d (mm) | E (mm) | F (mm) | P (mm) | P0 (mm) | P1 (mm) | T (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Tolerance | ±0.3 | ±0.18 | ±0.14 | ±0.1 | ±0.25 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
| SOD-323ST | 8.00 | 1.60 | 2.80 | 0.95 | 1.00 | 1.50 | 1.75 | 3.50 | 4.00 | 4.00 | 2.00 | 0.23 |
| SOD-123S | 8.00 | 2.00 | 3.85 | 1.10 | 1.00 | 1.50 | 1.75 | 3.50 | 4.00 | 4.00 | 2.00 | 0.23 |
| SOD-123S1 | 8.00 | 2.00 | 3.85 | 1.10 | 1.00 | 1.50 | 1.75 | 3.50 | 4.00 | 4.00 | 2.00 | 0.23 |
| SOD-123ST | 8.00 | 2.00 | 3.85 | 1.10 | 1.00 | 1.50 | 1.75 | 3.50 | 4.00 | 4.00 | 2.00 | 0.23 |
| SOD-123ST1 | 8.00 | 2.00 | 3.85 | 1.10 | 1.00 | 1.50 | 1.75 | 3.50 | 4.00 | 4.00 | 2.00 | 0.23 |
| SMAF | 12.00 | 2.90 | 5.50 | 2.10 | 1.00 | 1.55 | 1.75 | 5.50 | 4.00 | 4.00 | 2.00 | 0.23 |
| SMA-S | 12.00 | 2.72 | 5.29 | 1.35 | 1.00 | 1.55 | 1.75 | 5.50 | 4.00 | 4.00 | 2.00 | 0.23 |
| SMA-ST | 12.00 | 2.65 | 5.25 | 1.35 | 1.00 | 1.55 | 1.75 | 5.50 | 4.00 | 4.00 | 2.00 | 0.23 |
| Package | D (mm) | D1 (mm) | D2 (mm) | G (mm) | W1 (mm) |
|---|---|---|---|---|---|
| Tolerance | ±2.0 | ±1.0 | ±1.0 | ±1.0 | ±1.3 |
| SOD-323ST | 178 | 50.0 | 13.0 | 8.4 | 11.40 |
| SOD-123S | 178 | 50.0 | 13.0 | 8.4 | 11.40 |
| SOD-123S1 | 178 | 50.0 | 13.0 | 8.4 | 11.40 |
| SOD-123ST | 178 | 50.0 | 13.0 | 8.4 | 11.40 |
| SOD-123ST1 | 178 | 50.0 | 13.0 | 8.4 | 11.40 |
| SMAF | 178 | 50.0 | 13.0 | 12.4 | 18.00 |
| 330 | 50.0 | 13.0 | 12.4 | 18.00 | |
| SMA-S | 178 | 50.0 | 13.0 | 12.4 | 18.00 |
| SMA-ST | 178 | 50.0 | 13.0 | 12.4 | 18.00 |
Tape and Reel Specifications

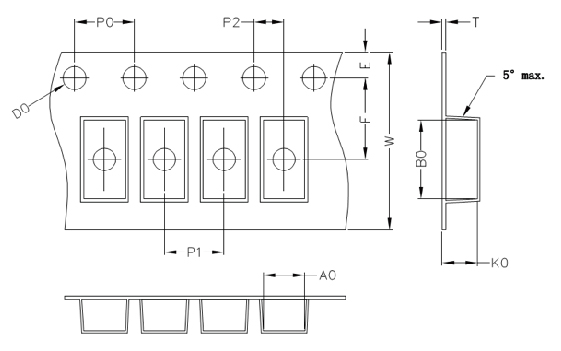

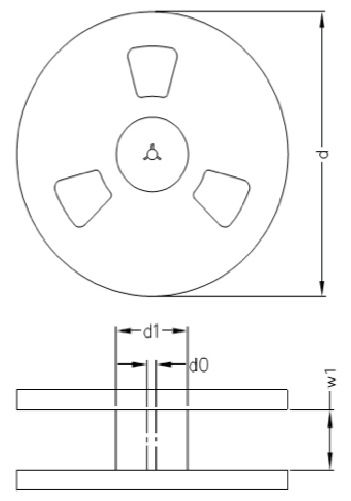

| Package | A0 (mm) | B0 (mm) | K0 (mm) | D0 (mm) | E (mm) | F (mm) | P0 (mm) | P1 (mm) | P2 (mm) | T (mm) | W (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Tolerance | ±0.3 | ±0.1 | ±0.1 | ±0.2 | ±0.2 | ±0.2 | ±0.2 | ±0.2 | ±0.2 | ±0.1 | ±0.3 |
| SMA | 2.80 | 5.33 | 2.36 | 1.55 | 1.75 | 5.50 | 4.00 | 4.00 | 2.00 | 0.25 | 12.00 |
| SMB | 3.80 | 5.40 | 2.45 | 1.55 | 1.75 | 5.50 | 4.00 | 8.00 | 2.00 | 0.25 | 12.00 |
| SMC | 6.05 | 8.31 | 2.54 | 1.55 | 1.75 | 7.50 | 4.00 | 8.00 | 2.00 | 0.25 | 12.00 |
| ABS | 5.31 | 6.68 | 1.60 | 1.55 | 1.75 | 5.50 | 4.00 | 8.00 | 2.00 | 0.25 | 12.00 |
| MBF | 5.05 | 7.10 | 1.65 | 1.55 | 1.75 | 5.50 | 4.00 | 8.00 | 2.00 | 0.25 | 12.00 |
| TO-2777B | 4.30 | 6.90 | 1.40 | 1.50 | 1.75 | 5.50 | 4.00 | 8.00 | - | 0.34 | 12.00 |
| 4.38 | 6.90 | 1.40 | 1.50 | 1.75 | 7.50 | 4.00 | 8.00 | - | 0.34 | 16.00 | |
| DO-218AB | 10.8 | 16.13 | - | 1.55 | 1.75 | 11.5 | 4.00 | 16.0 | 2.00 | - | 24.00 |
| Package | d (mm) | D0 (mm) | d1 (mm) | W1 (mm) |
|---|---|---|---|---|
| Tolerance | ±2.0 | ±2.0 | ±2.0 | ±2.0 |
| SMA | 330 | 13.5 | 75.0 | 13.5 |
| SMB | 330 | 13.5 | 75.0 | 13.5 |
| SMC | 330 | 13.5 | 75.0 | 17.0 |
| ABS | 330 | 13.5 | 75.0 | 13.5 |
| MBF | 330 | 13.5 | 75.0 | 13.5 |
| TO-2777B | 330 | 13.5 | 100 | 12.3 |
| 330 | 13.5 | 100 | 20.0 | |
| DO-218AB | 330 | 13.5 | - | 25.85 |
